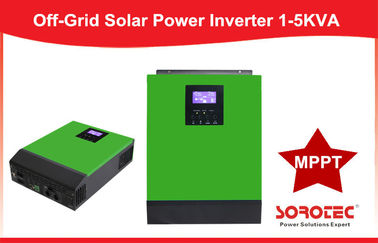

Fridge Off Grid Solar Inverter with 50A Mppt Solar Charger , PWM Solar Controller

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: SOROTEC
Chứng nhận: CE,ROHS,ISO9000
Model Number: SSP3118C1 1- 5KVA
Thanh toán:
Minimum Order Quantity: 5PCS Solar Power Inverters
Giá bán: Negotiable Price
Packaging Details: Standard Exported Cartons and Pallets For Solar Power Inverters
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Thông tin chi tiết

Sản phẩm: Tắt lưới Biến tần năng lượng mặt trời với bộ sạc năng lượng mặt trời 50A Mppt Công suất: 1- 5KVA
Tích hợp sẵn: Bộ điều khiển năng lượng mặt trời PWM ứng dụng: Tủ lạnh
Trọng lượng: 9,8kg Dạng sóng: Tinh khiết Sine Wave
Màn hình hiển thị: Màn hình LCD Nguồn điện: PV / AC / Pin
Điểm nổi bật:

solar energy inverter

,

home power inverter

Mô tả sản phẩm

3Kva 24Vdc To 230Vac Off Grid Solar Inverter with 50A Mppt Solar Charger



Quick Detailes:

SSP3118C1 series solar power inverter,

1) multi-function off-grid type for self- consumption,

2) 1000VA/800W,2000VA/1600W,3000VA/2400W,4000VA/3200W,5000VA/4000W

3) Built-in with PWM solar charge controller,

4) 4KVA/5KVA with max up to 6 units  solar inverters  parallel function and total capacity 24KW.

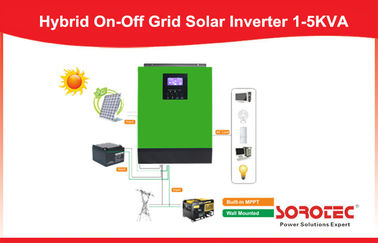

5) It power sourcing from Utility,battery ,PV.And supports charging priorities for Utility, PV, Utility & PV.

6) Remote control with RS232/USB,LCD display information in real-times.

7) widely used to provide the reliable and long time backup power supply for home office appliances and solar power systems.

8)Low battery voltage protection ,Over load protection,Output short circuit ,Over- temperature,Restrain surge interference

Eliminate noise protection for thunder striking,provide the reliable power to the home appliances.



Key Features:

Built-in with 50A PWM Solar Power Inverter



Support mains voltage or generator power



Auto restart while AC is recovering



Cold start function,Remote panel available





AC/Solar input priority via LCD setting



Smart battery charger design



Selectable input voltage range



6 units can Parallel operation only for 4Kva/5Kva



Selectable charging current based on applications



Technical Specification of SSP3118C1 Series Solar Power Inverters:

MODEL C1 1K-1250 C1 2K-2450 C1 3K-2450 C1 4K-4850 C1 5K-4850
Rated Power 1000VA / 800W 2000VA/1600W 3000VA / 2400W 4000VA / 3200W 5000VA / 4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15.5 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 50VDC 60VDC 105VDC
Standby Power Consumption 1 W 2 W 2W
Maxmum Solar Charge Current 50A 50A 50 A
Maximum AC Charge Current 20 A 30 A 60 A
Maximum Charge Current 50 A 50 A 110 A
PHYSICAL
Dimension, D x W x H (mm) 95 x 240 x 316 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 5 6.4 6.9 9.8 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C



Fridge Off Grid Solar Inverter with 50A Mppt Solar Charger , PWM Solar Controller 0

FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
