Name: IGBT High Frequency Online UPS with Twin - Channel Line Input Wiring , High Efficiency
Brand: SOROTEC
SKU: HP9330C 20-80KVA
Price: 10000 USD
Availability: InStock
Rating: 4.8 (188 reviews)

IGBT High Frequency Online UPS with Twin - Channel Line Input Wiring , High Efficiency

Thông tin chi tiết sản phẩm:

Place of Origin:

China

Hàng hiệu:

SOROTEC

Chứng nhận:

CE,ROHS,ISO9000

Model Number:

HP9330C 20-80KVA

Thanh toán:

Minimum Order Quantity:

Giá bán:

USD10000

Packaging Details:

Standard Exported Cartons and Pallets

Delivery Time:

Within 15-30days after receiving your 30% TT deposit

Payment Terms:

L/C, T/T, Western Union,Paypal

Supply Ability:

10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Thông tin chi tiết
Tần số định mức:	50 / 60HZ	Dải tần số:	50 / 60HZ ± 5%
Hệ thống dây điện:	Đầu vào dòng đôi	THDi:	3%
Hệ số công suất:	＞ 0,99	Hiện tại Crest tỷ lệ:	3: 1
Hiện tại đang sạc:	0,5 ~ 4,5A (Có thể điều chỉnh)	Tần số chính xác:	50 / 60Hz ± 0,2%
Dải điện áp:	380VAC ± 25%
Điểm nổi bật:	pure sine wave ups , high frequency ups

Mô tả sản phẩm

IGBT UPS HP9330c 20kVA to 80kVA (3pH/3pH) HP9330c Series 20-80kVA (3pH in/ 3pH out)

Key Features:

1. Twin-Chiannel line input.

2. Large LCD Graphical display panel, convenient for operation.

3. Connect up to 8 units in parallel for maximum flexibility (no parallel kit required), and compatible to battery share in the parallel mode, which helps the customers to extend the system capacity with lowcost.

4. Intelligent management of battery charging and discharging.

5. Advanced IGBT rectification, Input power factor: 0.99

6. Input current harmonic < 3%

7. The Efficiency of the machines is as high as 94%

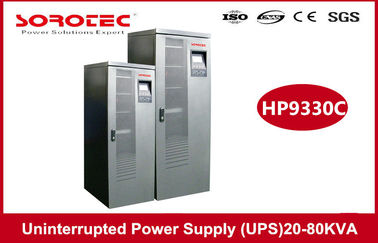

IGBT High Frequency Online UPS with Twin - Channel Line Input Wiring , High Efficiency 0

Technical Specifications of Online UPS HP9330C 208V 20-80KVA

Model		HP9330C 20-80KVA
		20K	20K-XL	30K-XL	40K-XL	60K-XL ISO	80K-XL ISO
Rated Capacity		20KVA/16KW		30KVA/ 24KW	40KVA/ 32KW	60KVA/ 48KW	80KVA/ 64KW
Rated Voltage		220VAC/208VAC Three-phase 4 line + earth line
Rated Frequency		50/60HZ
Input
Voltage range		380VAC±25%
Frequency range		50/60HZ±5%
Wiring		Twin- channel line input
THDI		＜3%
Power factor		＞0.99
Output
Voltage precision		208VAC (±1%)；Three-phase 4 line + earth line
Frequency precision		50/60HZ±0.2%
Power factor		0.8
Current crest ratio		3:1
Overload capacity		≤110%for 60 minutes； ≤125％ for 10min； ≤150％ for 1min；
Battery
Charging current		0.5~4.5A(adjustable)
Backup time		7mins	Determined by the amount of external-connected cells
Quantity		28/30/32(selective)； compatible to battery share in the parallel mode
Efficiency
Line mode/BAT mode		94%
ECO mode		98%
Indication
LCD		I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning
Communications
Communication interface		RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot , SNMP(Option)
Operation Environment
Temperature		0～40℃
Humidity		0～95% (no dewfall)
Storage temperature		-25℃～55℃
Altitude(M)		< elevation 1500m
Weight
weight(KG)	Net weight	182.5	82	110	114	282	306
	Gross weight	204	122	160	164	356	380
Dimension (WXDXH)mm		420 X630 X1240	420 X630 X950	490 X680 X1180		600 X800 X1850
