USB Line Interactive UPS HP5115E
|
Thông tin chi tiết sản phẩm:
|
|
| Place of Origin: | China |
|---|---|
| Hàng hiệu: | SOROTEC |
| Chứng nhận: | CE,ROHS,ISO9000 |
| Model Number: | HP9330C 20-80KVA Online UPS |
|
Thanh toán:
|
|
| Minimum Order Quantity: | 10000 PCS UPS |
| Giá bán: | 10000USD |
| Packaging Details: | Standard Exported Cartons and Pallets For Uninterrupted Power Supply UPS |
| Delivery Time: | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms: | 30% TT in advance, the balance before shipping |
| Supply Ability: | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | UPS trực tuyến | Công suất: | 20-80KVA |
|---|---|---|---|
| Màn hình hiển thị: | MÀN HÌNH LCD | Tần số: | 50 / 60HZ |
| Dạng sóng: | Sóng hình sin tinh khiết | Ứng dụng: | UPS viễn thông |
| Giao diện thông minh: | RS232 / RS485, Khe cắm thông minh, EPO | Chức năng song song: | UPS 8 đơn vị Để làm việc song song |
| Điểm nổi bật: | backup power supply,ups power supply |
||
Mô tả sản phẩm
IP21 Protection Large LCD Uninterruptible Power Source UPS 20KVA 16KW for Telecom
Key Features:
SOROTEC HP9330C series 3Ph in/3Ph out High Frequency Online UPS Power System,capacity from 20kva to 80kve,adopta advanced IGBT Rectifier technology,Input power factor: 0.99.Input THDi < 3%,the efficiency of the machines is as high as 94%.
SOROTEC HP9330C series Connect up to 8 units in parallel for maximum flexibility ,compatible to battery share in the parallel mode , which helps the customer to extend the system capacity with lowcost.Intelligent management of battery charging and discharging.Twin-channel line input.Large LCD Graphical displaypanel , convenient for operation.
SOROTEC HP9330C series widely application in provide reliable and long time backup uninterrupted power supply for personal computers, medical, telecom, local areas network,labs,servers,e-business and so on precision equipments.
HP9330C Series UPS represents the best solution that is both cost effective and environmental friendly,it delivers excellent integrated automatically,reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.
Technical Specification of High Frequency Online UPS 20-80KVA
| Model | HP9330C 20-80KVA | ||||||||
| 20K | 20K-XL | 30K | 30K-XL | 40K | 40K-XL | 60K-XL ISO | 80K-XL ISO | ||
| Rated Capacity |
20KVA/ 16KW |
30KVA/ 24KW |
40KVA/ 32KW |
60KVA/ 48KW |
80KVA /64KW |
||||
| Rated Voltage | 380/400/415VAC； 3-phase+N+G | ||||||||
| Rated Frequency | 50/60HZ | ||||||||
| Input | |||||||||
| Voltage Range | 380VAC±25% | ||||||||
| Frequency Range | 50/60HZ±5% | ||||||||
| Wiring | Twin- channel line input | ||||||||
| THDI | ＜3% | ||||||||
| Power Factor | ＞0.99 | ||||||||
| Output | |||||||||
| Voltage Precision | 380 X (1±1%)VAC； 3-phase+N+G | ||||||||
| Frequency Precision | 50/60HZ±0.2% | ||||||||
| Power Factor | 0.8 | ||||||||
| Current Crest Ratio | 3∶1 | ||||||||
| Overload Capacity | ≤110%for 60 minutes；≤125% for 10min；≤150% for 1min； | ||||||||
| Battery | |||||||||
| Charging Current | 0.5~4.5A(adjustable) | ||||||||
| Charging Current | 7mins | ||||||||
| Quantity | 28/30/32(selective)；compatible to battery share in the parallel mode | ||||||||
| Efficiency | |||||||||
| 94% | |||||||||
| Line mode/BAT mode | 98% | ||||||||
| ECO mode | I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning |
||||||||
| Indication | |||||||||
| LCD | |||||||||
| Communications | |||||||||
| Communication Interface |
RS232,AS400,RS485,Service,EPO,BAT temperature compensation,Intelligent Slot , SNMP(Option) |
||||||||
| Operation Environment | |||||||||
| Temperature | 0℃~40℃ | ||||||||
| Humidity | 0 95% (Non-condensing) | ||||||||
| Storage Temperature | -25℃ 55℃ | ||||||||
| A 1000 m | ≤1000m | ||||||||
| Physics Characteristic | |||||||||
| Weight (KG) |
N.W | 158 | 82 | 220 | 110 | 224 | 114 | 282 | 306 |
| G.W | 198 | 122 | 270 | 160 | 274 | 164 | 356 | 380 | |
| Dimensions : ( Wx D x H )mm |
420X600X 1250 |
420X600X 950 |
470X700X 1750 |
470X700X 1150 |
470X700X 1750 |
470X700X 1150 |
600X800X 1850 |
||

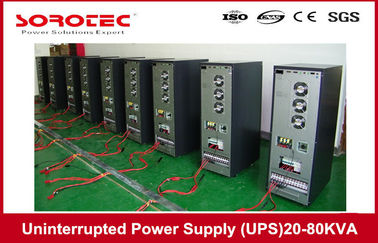

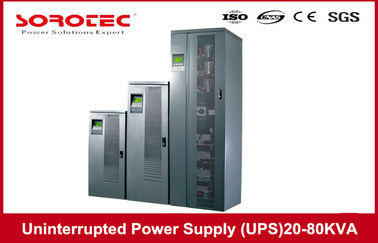

Product Show
