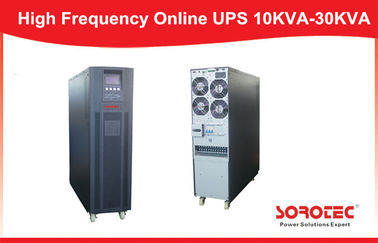

20K 18KW 50HZ 230VAC small ups power supply , uninterrupted power supplies High Performance

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: SOROTEC
Chứng nhận: CE,ROHS,ISO9000
Model Number: HP9335C Plus 10-30kVA Online UPS
Thanh toán:
Minimum Order Quantity: 2PCS Online UPS
Giá bán: 1000USD Per Pieces
Packaging Details: Standard Exported Cartons and Pallets for High Frequency Online UPS
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Thông tin chi tiết

Sản phẩm: UPS trực tuyến tần số cao Công suất: 20KVA / 18KW
Dải tần số: 50 / 60hz Kích thước: 832 * 250 * 894mm
ứng dụng: Trung tâm dữ liệu, công nghiệp, viễn thông, y tế Điện áp pin: 12 V / 9AH
Giai đoạn: 3Phase với mặt đất Hiệu quả: > 89% ở chế độ AC
Chế độ EPO: Có sẵn
Điểm nổi bật:

ups uninterruptible power supply

,

pure sine wave ups

Mô tả sản phẩm

20K 18KW 50HZ 230VAC small ups power supply , uninterrupted power supplies High Performance



HP9335C PLUS Series High Frequency Online UPS,which capacity from 10kva to 30kva with output power factor 0.9 ,can take more loads than normal ups.

It support 3phase input 3phase output ,380/450/415VAC,50/60HZ system.  Optional isolation transformer  offers full isolation and complete common mode

noise rejection. Maintenance bypass available and support Emergency Power Off if the emergency occurs. Widely used to provide long time backup uninterrupted power supply for Personal Computer, Medical, Telecom,Local Area Networks,Labs,Servers,E-business ,Industry and so on precision Equipments.




Key Features:

  1. Optional N+X parallel redundancy
  2. True double online conversion
  3. Generator input available
  4. Support  dual-mains inputs
  5. 50Hz/60Hz frequency onvertion
  6. Emergency power off function (EPO)
  7. SNMP+USB+RS-232 multi-communications
  8. Isolation transformer offers full isolation
  9. ECO mode operation for energy saving
  10. Wide input voltage range (110-300 VAC)
  11. Active power factor correction in all phases
  12. DSP technology guarantees high performance
  13. 3-stage extendable charging design for optimized battery performance



 Reduce the Investment Coast Saving Valuable Space:
HP9335C PLUS Series High Frequency Online UPS represents the best solution that is both cost effective and environmental friendly,

it delivers an excellent integrated autonomy,reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.





Technical Parameters of High Frequency Online UPS

MODEL HP9335C Plus 10-30KVA
10K 10K-XL 15K 15K-XL 20K 20K-XL 30K 30K-XL
CAPACITY 10KVA / 9KW 15KVA / 13.5KW 20KVA / 18KW 30KVA / 27KW
PHASE 3 Phase with Neutral
INPUT
Voltage Range Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
Low Line Comeback Low Line Loss Voltage + 10V
High Line Loss 300 VAC(Ph-N) ± 3 %
High Line Comeback High Line Loss Voltage - 10V
Phase Three phase with ground
Power Factor ≥ 0.99 at 100% Load
OUTPUT
Output voltage 208/220/230/240VAC(Ph-N)
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload AC mode 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
Battery mode 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
Current Crest Ratio 3:1 max
Harmonic Distortion ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time Line←→Battery 0 ms
Inverte←→Bypass 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
Line←→ECO <10 ms
EFFICIENCY
AC mode > 89% > 89% > 89% > 90%
Battery Mode > 86% > 88% > 87% > 89%
BATTERY
Standard Model Type

12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah
Numbers 20(18-20 adjustable) 2 x 20(18-20 adjustable) 2 x 20(18-20 adjustable) 3 x 20(18-20 adjustable)
Recharge Time 9 hours recover to 90% capacity
Charging Current 1.0 A ± 10% (max.) 2.0 A ± 10% (max.) 2.0 A ± 10% (max.) 4.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
Long-run Model Type Depending on applications
Numbers 18-20
Charging Current 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 12.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
PHYSICAL
Standard Model Dimension,DxWxH(mm) 832 X250X894 832 X250X1275
Long-run Model Dimension,DxWxH(mm) 609 X250X768 832 X250X828
ENVIRONMENT
Operation Temperature 0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity <95 % and non-condensing
Operation Altitude <1000m
Acoustic Noise Level Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
USB Power management from SNMP manager and web browser
